How To Use TDS Tester

What Is a TDS Tester?

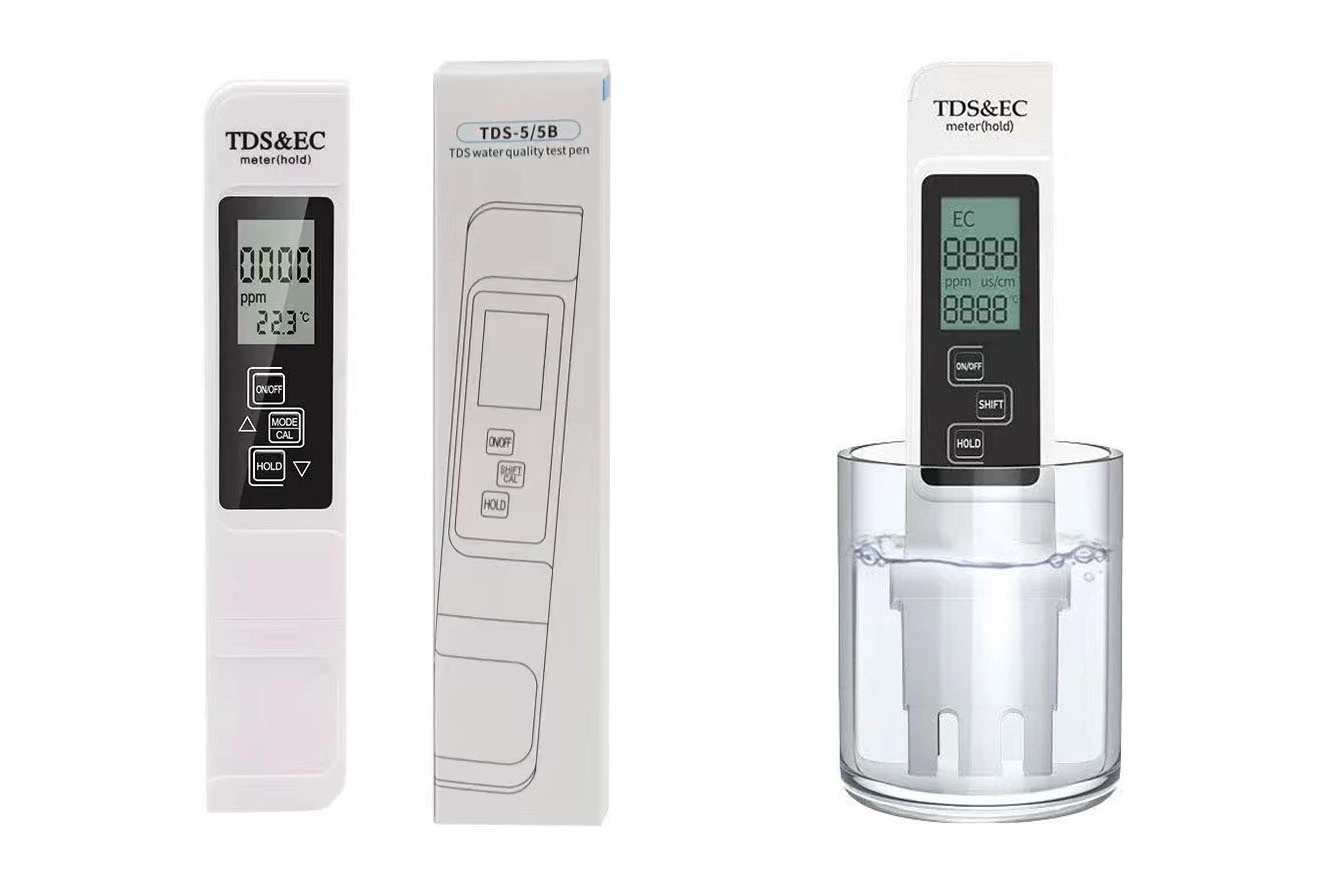

First, let’s answer a common question: What does a TDS tester do? TDS meter is a professional instrument with multi-function,can be used to testing water TDS (the weight of total dissolved solid of water,unit is mg/L or ppm). conductivity (the ability of conduction current expressedin digit, unit is us/cm) and the temperature. It has high performance, pen-typedesign, fast numerical stability and accurate result.

BasideWT’s TDS tester stands out for three key reasons. It is accurate, portable, and user-friendly. Unlike cheap alternatives, it delivers consistent readings you can trust. It fits in your pocket, so you can test water anywhere. It also has a clear display that even beginners can read in seconds.

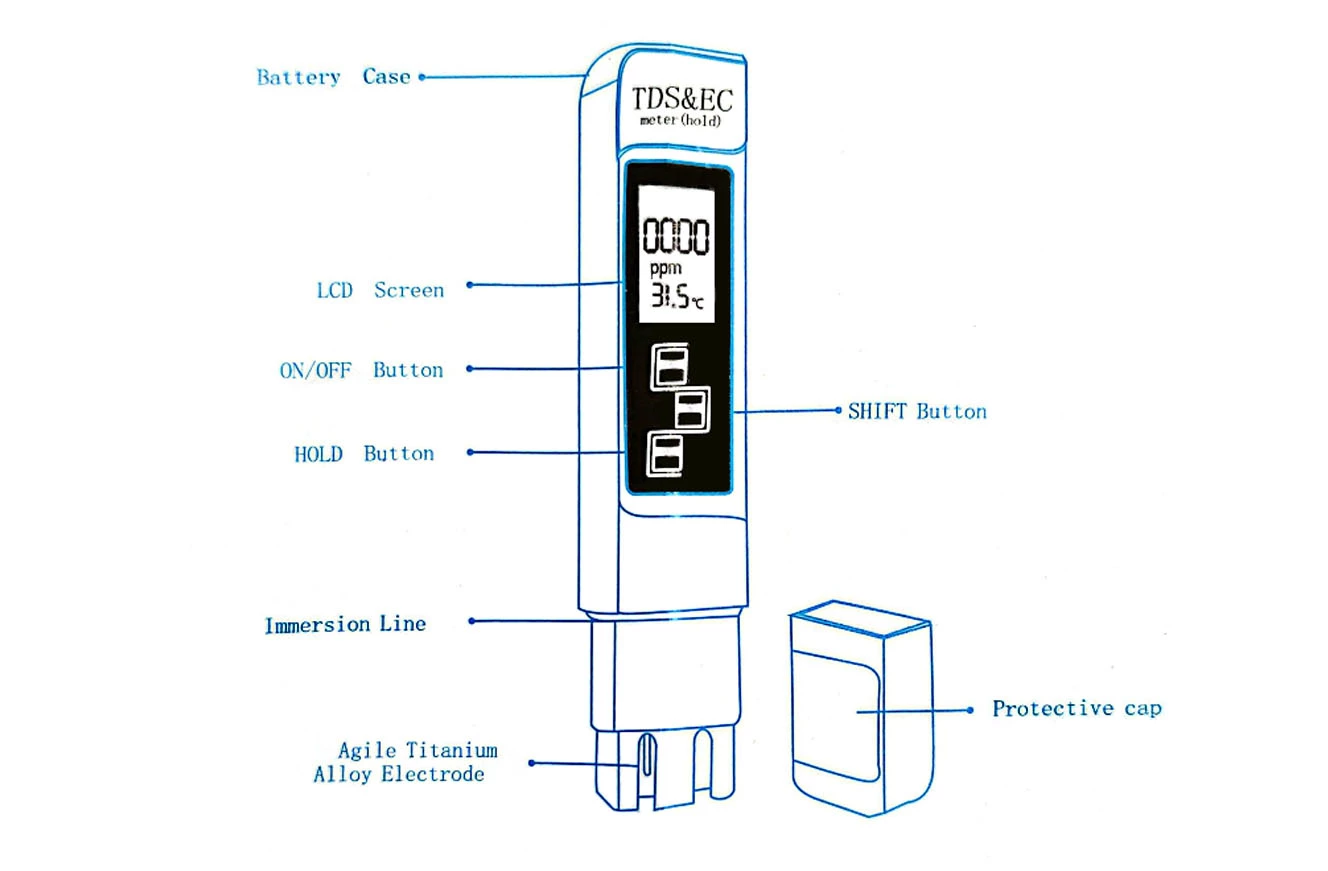

TDS Tester Quick Guide

Measure Range

Condcuctivity: 0-9999us/cm	Celsius: 0.1-80.0 ℃
TDS: 0-9999ppm	Fahrenheit:32.0-176.0 ℉
Accuracy: ±2%	Size: 154x30x14mm

TDS Tester Hold Function

also it will be automatic locked without pressing any keywithin 5 minutes. After locked, press the “SHIFT” button to convert to the result of different mode.

Auto Shut-off Function

Instrument will automatically shut offto save battery power without pressing any key within 5 minutes.

Automatic temure compehsation

The instrument has automatic temperature compensation function.

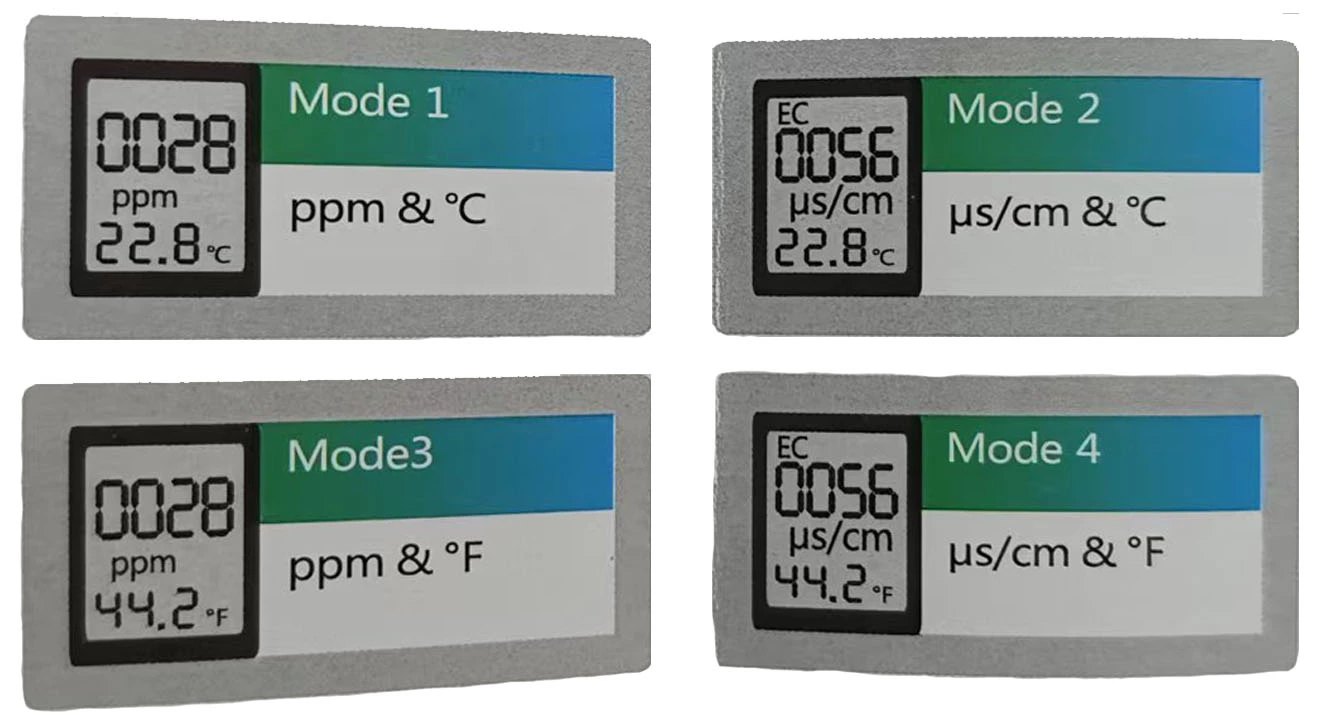

Mode shift

When you press the SHIFT button, the instrument automatically shifts between the following four display modes: between the following four display modes:

TheInstrument has memoryfunction, the boot mode is thelast time shutdown mode

Maintenance

Keep the electrode clean. Always close the electrode protective cap.Please take out the batteries for long periods unused.

TDS Tester Warranty:

Product warranty period is from the date of purchase.The following situation are not in the range of the warranty. damagecaused by misoperation (battery leakage, water into circuit boards etc.)

TDS Tester Use Step:

1.Remove the electrode protective cap before use.

2. Press the ON/OFF button, and immerse the meter into the solution. (thesolution should not over the immersion line.)

3. After the numerical display is steady, press the HOLD button and take it out ofthe solution for checking the result

4 wipe clean the electrode after using, turn off the meter and replace theprotective cap.

Note:

The instrument is a professional instrument, please using it under professionalinstructions to avoid instrument damage.

Avoid heat, direct sunlight.

Please adopt standard buffer solution to calibrate, incorrect calibration wouldcause result error, thus affection the accuracy of measurement, or cause theinstrument not working.

Instrument is non waterproof, do not throw the instrument into the solution ormake the solution over the immersion line, to avoid the circuit board short out
