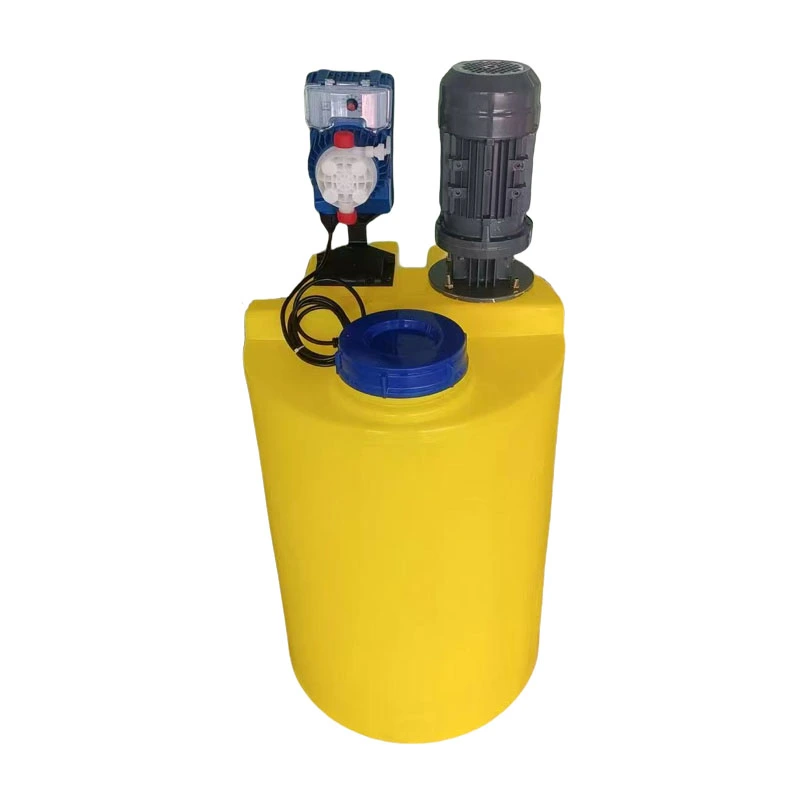

Chemical Dosing Pump and Electric Mixer Agitator for Mixing in Sewage Water

Have you ever wondered what ensures chemicals blend perfectly in a vast sewage tank? The answer is a robust Electric Mixer Agitator used in modern dosing pump and tanks stirrer systems. This powerhouse is the heart of effective wastewater treatment mixing. It transforms clumpy, inconsistent sewage into a homogeneous mixture. Therefore, processes like disinfection and neutralization work far better.

For China water treatment projects, this electric mixer agitator is suitable for chemical dosing tanks, wastewater treatment tanks, neutralization tanks, and sludge mixing applications. The mixer helps maintain uniform chemical concentration and keeps suspended solids evenly distributed during treatment.

How Does a Sewage Water Mixer Agitator Function?

An industrial agitator mixer operates on a simple but vital principle and is widely used in water filtration systems. It uses a powerful electric motor to rotate an impeller submerged in the tank. The impeller creates controlled circulation inside the tank, helping maintain a consistent mixture throughout the working volume. The required mixing effect depends on tank volume, liquid characteristics, impeller design, shaft length, and motor power. This rotation creates controlled fluid dynamics. Essentially, it forces water and solids to move violently.

This action has one primary goal: achieve perfect uniformity in tanks supported by FRP tank systems. The wastewater agitator prevents solids from settling at the bottom. It also stops grease from floating on top. Instead, it creates a consistent, well-mixed slurry. This ensures every particle interacts equally with treatment chemicals.

Critical Applications for Wastewater Mixing Equipment

Where exactly is this technology deployed? Its uses are vast and varied across the treatment process.

• Chemical Blending: Mixing chemicals in water is a primary task. The agitator ensures coagulants, flocculants, and disinfectants disperse instantly. This eliminates weak spots and maximizes chemical efficiency.
• pH Neutralization Tanks: Here, the mixer blends acidic or alkaline waste with neutralizing agents. Consistent sewage water mixing is crucial. It maintains a stable pH level and prevents corrosive local pockets.
• Sludge Homogenization: In sludge storage tanks, solids constantly settle. An agitation system for sewage keeps this thick material in suspension. This makes metering dosing pump much easier and more consistent.
• Aerobic Digestion: Some processes require pumping air into sewage. A mixer agitator works alongside aerators. It spreads the oxygen bubbles evenly throughout the tank. This dramatically improves bacterial activity.
• Chemical Dosing and Flocculation: The mixer keeps coagulants, flocculants, and other treatment chemicals evenly dispersed in dosing and reaction tanks. This helps reduce concentration differences and supports more consistent treatment results.

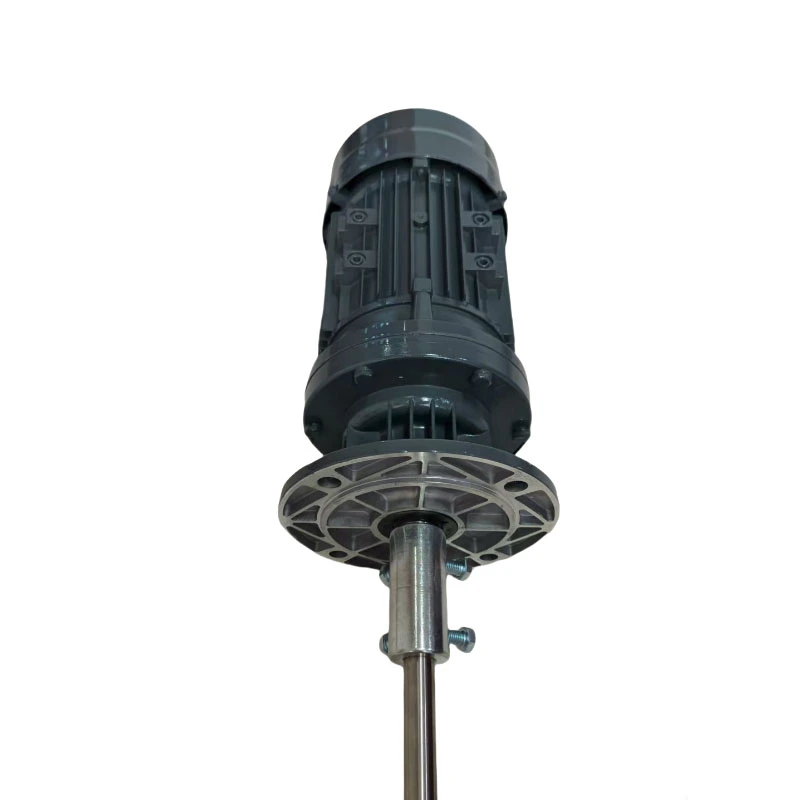

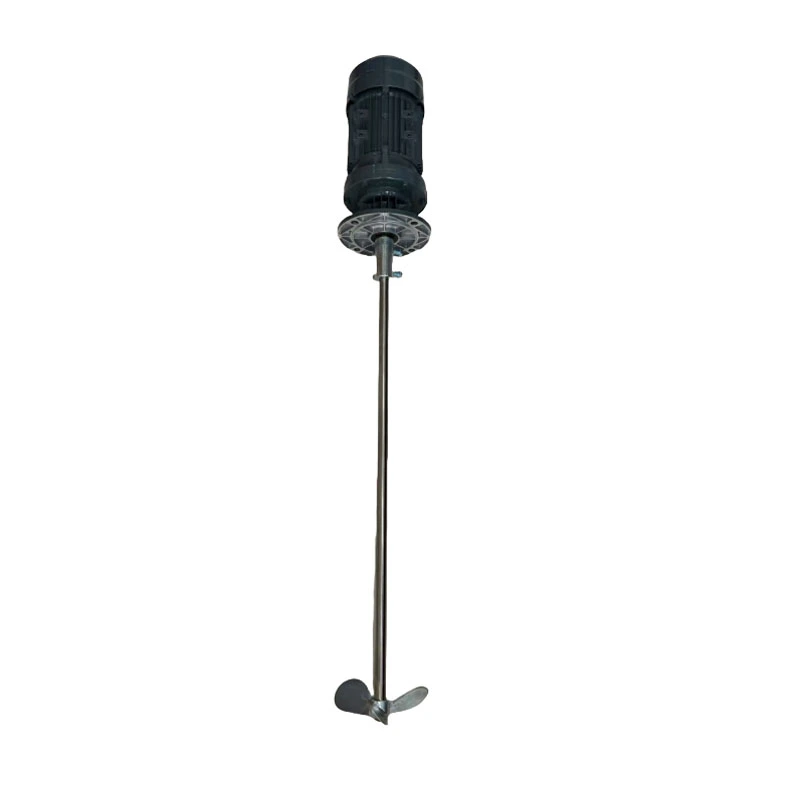

Electric Mixer Agitator for Industrial Tank Mixing Applications

An electric mixer agitator is designed to deliver consistent blending across dosing tanks and industrial processes. This industrial agitator mixer keeps liquids, chemicals, and sludge evenly suspended while preventing sediment buildup. As a result, it helps maintain consistent mixing throughout the tank and supports more stable treatment processes. In wastewater treatment, the tank mixer agitator promotes uniform circulation of liquids and solids. Likewise, the chemical mixing agitator supports even chemical distribution in dosing systems, helping improve overall mixing efficiency and process stability. The electric tank mixer design supports continuous operation, making it suitable for industrial mixing equipment where reliable agitation is required for uniform results.

How to Select the Right Electric Mixer Agitator

Selecting an electric mixer agitator should be based on tank volume, liquid viscosity, solids concentration, required mixing speed, motor power, shaft length, and impeller type. For wastewater and chemical dosing applications, the material should also be selected according to the chemical properties and operating conditions. BasideWT can configure the mixer according to the application and tank requirements.

Parameters of Liquid Dosing Mixer

Product Name	Liquid Dosing Mixer
Power	0.37KW, 0.55KW, 0.75KW, 1.1KW, 1.5KW, 2.2KW,3KW
Voltage	100V/110V/ 220V/ 240V/ 380V/ 415V
Material	SUS304
Capabilities	Dispersing And Mixing
Core	Pure Copper Core
Installation method	Vertical
Model	Agitator/Mixer
Leaf type	three leaf;  shape; three blade high efficiency type; custom made

The Performance Characteristics of The Liquid Dosing Mixer

1. Efficient Power Transmission: The geared drive provides stable power transmission for continuous mixing applications and supports consistent agitator operation.
2. High reduction ratio with outstanding transmission efficiency, achieving up to >90% efficiency in most applications.
3. Compact and space-saving design with a high power-to-volume ratio, making it ideal for applications with limited installation space.
4. Easy maintenance and repair due to its modular structure and simplified assembly, reducing downtime.
5. Smooth and quiet operation with low vibration and minimal noise, suitable for noise-sensitive environments.
6. Exceptional durability and long service life, thanks to robust manufacturing and high-quality materials that withstand rigorous operating conditions.
7. High overload capacity and shock resistance, with low inertia for dynamic applications requiring frequent starts and stops.
8. Continuous Mixing Capability: The agitator is suitable for continuous industrial mixing where stable circulation and suspension are required during water treatment and chemical dosing processes.

Electric Mixer Agitator for Water Treatment Projects in China

BasideWT supplies electric mixer agitators for water treatment, chemical dosing, wastewater treatment, and industrial tank mixing applications in China. The mixer can be matched to different tank sizes and process requirements based on motor power, shaft length, impeller configuration, and mixing conditions. For China-based projects, buyers can provide tank volume, liquid type, required capacity, and operating conditions to confirm the suitable mixer configuration.
