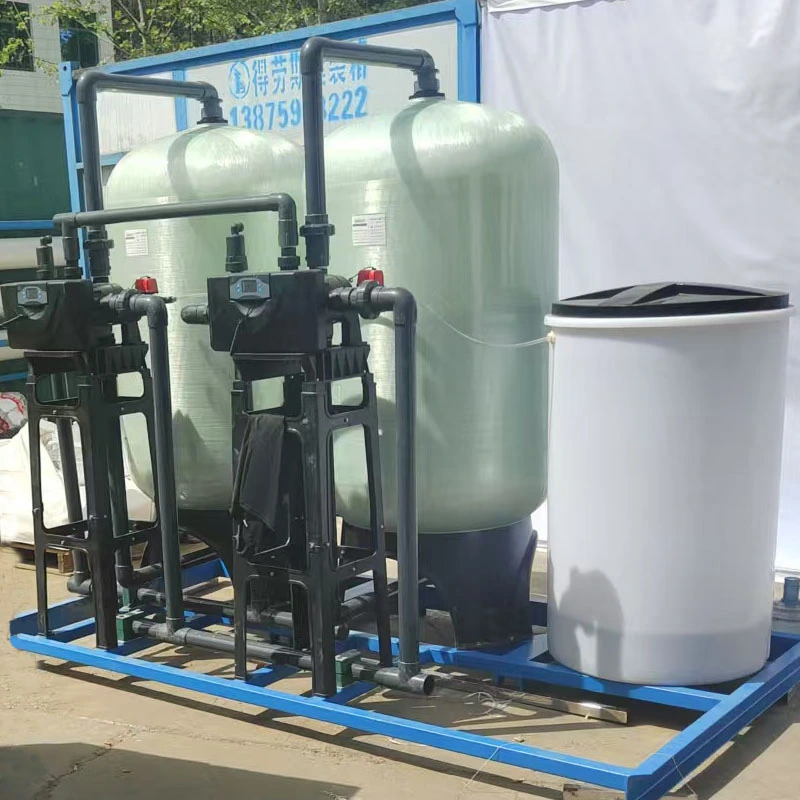

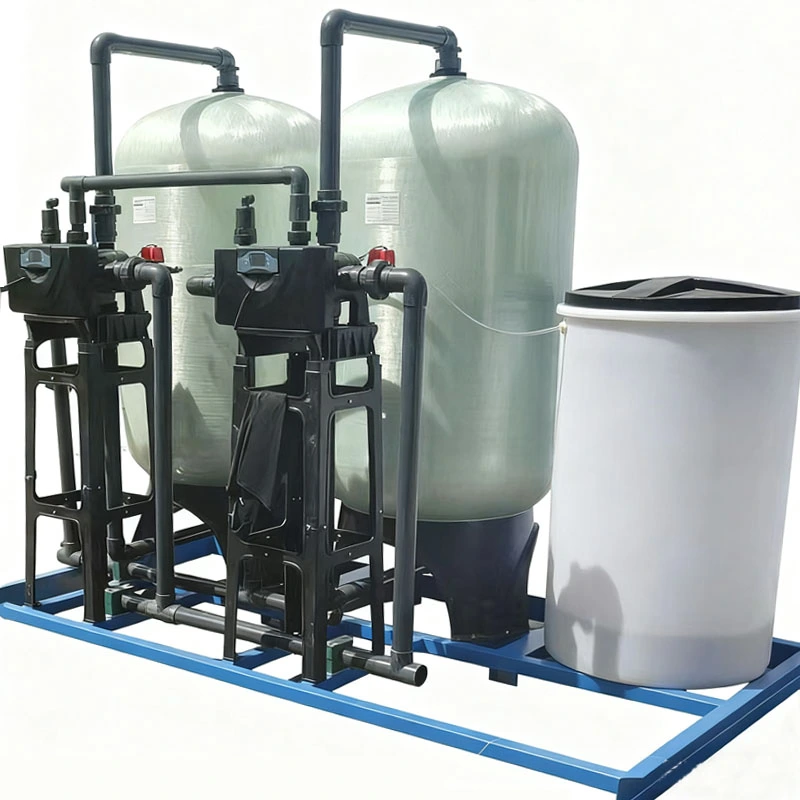

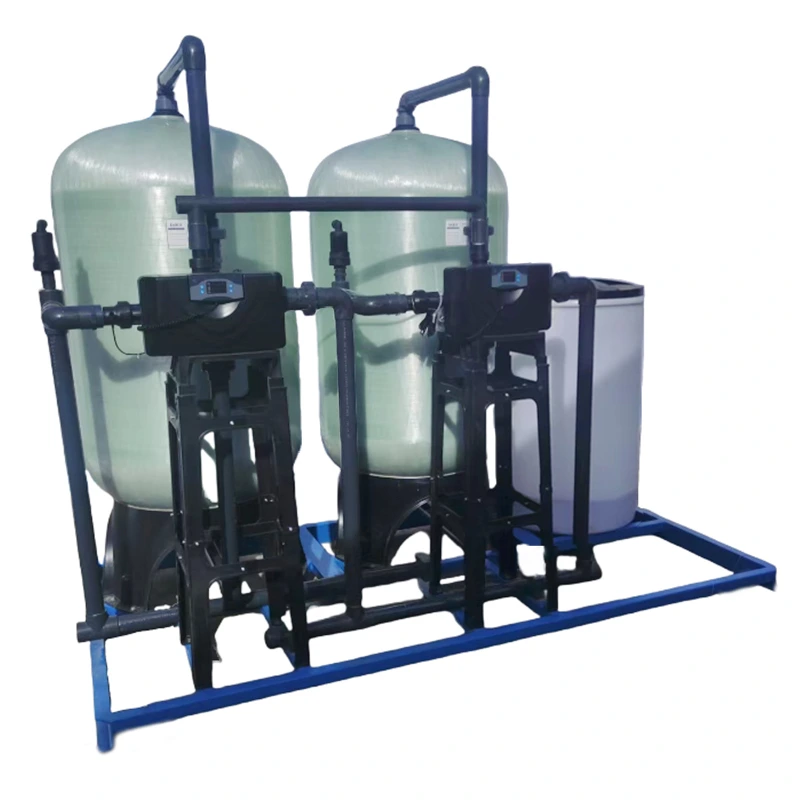

10T/H Industrial Water Softening System Automatic Ion Exchange Cation Resin Water Softener

Water hardness poses a constant challenge in many industrial processes. Minerals like calcium and magnesium accumulate. Hard water minerals form scale, which reduces operational efficiency and can lead to costly damage to expensive equipment. How can industries tackle this problem effectively? The answer is a dedicated water softening system. Specifically, a 10T/H industrial-grade water softener. This system ensures a continuous supply of soft water. It protects machinery. It cuts operational costs. Let’s explore what makes this system indispensable.

How Does a 10T/H Industrial Water Softening System Work?

An industrial water softener operates on a simple yet powerful principle: ion exchange. Hard water enters the system. It passes through a bed of cation exchange resin. This resin is charged with sodium ions. As water flows, resin beads capture calcium and magnesium ions. They release sodium ions in return. The result? Soft, scale-free water.

But what happens when the resin becomes saturated? This is where automation plays a key role. The system initiates a regeneration cycle. It uses a brine solution from the salt tank. The brine washes the resin. It flushes out hardness ions. It recharges the resin with sodium. The process is efficient. It is automatic. It requires minimal human intervention.

Technical Specifications for a 10 T/H Industrial Water Softening System

Here are the precise answers to your questions based on standard industry design for a 10 cubic meter per hour automatic ion exchange water softener.

Q1: What is the salt consumption per regeneration?

The salt consumption is directly proportional to the amount of cation exchange resin in the vessel and the chosen regeneration level.

• Typical Resin Volume: A standard 10 T/H system contains approximately 750 liters of strong acid cation exchange resin.
• Standard Regeneration Level: The typical salt dosage is 150 – 160 grams of NaCl (sodium chloride) per liter of resin.

Calculation:
750 L × 150 g/L = 112,500 grams = 112.5 kg

Answer: The salt consumption per regeneration cycle is approximately 110 to 120 kg. Using high-purity industrial grade salt is critical to prevent resin fouling.

Q2: What is the production volume of water between two regenerations?

This is also known as the service cycle capacity. It is not a fixed number but is determined by the incoming water hardness.

• Assumed Inlet Hardness: For calculation purposes, let’s assume a common inlet hardness of 5 mmol/L (or 250 ppm as CaCO₃).
• Resin Capacity: The resin has a theoretical exchange capacity of approximately 1.0 equivalent per liter (eq/L) when regenerated at the standard salt dose mentioned above.

Calculation:

1. Total resin capacity = 750 L × 1.0 eq/L = 750 equivalents
2. Production volume between regenerations = Total capacity ÷ Inlet hardness
   = 750 eq ÷ 5 mmol/L ÷ 1000* = 150 cubic meters
   (1 equivalent = 1000 milliequivalents)*

Answer: With an inlet hardness of 5 mmol/L, the system will produce approximately 150 cubic meters of soft water between regenerations. If the inlet hardness is higher, the production volume decreases proportionally.

Q3: What is the working and nominal pressure of the softener?

These are two distinct pressure ratings:

• Working Pressure Range: This is the operational water pressure required at the inlet for the system to function correctly. The standard working pressure range is 0.2 MPa (2 bar, 29 psi) to 0.6 MPa (6 bar, 87 psi).
• Nominal Pressure (Design Pressure): This is the maximum safe pressure the vessel itself is designed to withstand. For Fiber-Reinforced Plastic (FRP) vessels, the standard nominal pressure is 0.8 MPa (8 bar, 116 psi) or 1.0 MPa (10 bar, 145 psi). The valves and piping are rated to match.

Answer: Operate the system within the 0.2 – 0.6 MPa working range. Never exceed the 0.8/1.0 MPa nominal pressure of the vessel.

Q4: What is the regeneration time duration?

The regeneration is a multi-step process. The total time is typically between 75 and 105 minutes.

Here is the breakdown of the automatic cycle:

1. Backwash: 10-15 minutes. Reverses flow to lift and flush the resin bed.
2. Brine Draw (Slow Rinse): 45-60 minutes. The critical phase where brine is drawn and slowly rinsed through the resin.
3. Fast Rinse: 15-20 minutes. Fresh water is used to flush out any remaining brine and impurities.
4. Brine Tank Refill: 5-10 minutes. Water is added to the brine tank to dissolve salt for the next cycle.

Answer: The total regeneration time duration is typically 90 minutes (±15 minutes). This process is always initiated during periods of low water demand to avoid interrupting operation.

Benefits of Using a Cation Exchange Resin Softener

The advantages of using a cation exchange softener are numerous. First, it prevents scale buildup. Scale reduces heat transfer efficiency in boilers and cooling systems. It increases energy bills. It leads to frequent repairs. By removing hardness ions, the softener eliminates this risk.

Second, it improves product quality. Industries like food, beverage, and pharmaceuticals need consistent water quality. Soft water ensures better results. It also reduces soap and detergent consumption. This cuts costs in cleaning and laundry applications.

Third, it extends equipment lifespan. Soft water reduces wear and tear on valves, pumps, and heat exchangers. This means fewer replacements. Less downtime. Higher productivity.

Applications Across Industries: Where Is It Used? 10T/H Industrial Water Softening System

This system serves a wide range of sectors, and its versatility is one of its biggest strengths.

Manufacturing: It protects cooling towers, compressors, and process lines.
Hospitality: Additionally, it provides soft water for hotels, laundries, and kitchens.
Food & Beverage: Furthermore, it ensures water purity for production and cleaning.
Pharmaceuticals: Moreover, it meets strict standards for water quality in formulations.
Power Plants: Finally, it prevents scale in boilers and cooling systems.

Each industry benefits significantly from softened water. Ultimately, it enhances operational efficiency while safeguarding infrastructure.

---

Technical Specifications and Performance Metrics

Understanding the technical details is crucial. Here are the key specs of a standard 10T/H system:

• Flow Rate: 10 tons/hour (37,850 liters/hour)
• Working Pressure: 0.2 – 0.6 MPa
• Resin Type: High-grade cation exchange resin
• Valve Material: Durable brass
• Tank Material: Corrosion-resistant FRP
• Brine Tank: Polyethylene with salt grid

The system features an intuitive control panel, allowing operators to easily adjust regeneration settings and closely monitor hardness levels for straightforward operation.Finally, alerts promptly notify users of low salt or system errors.
