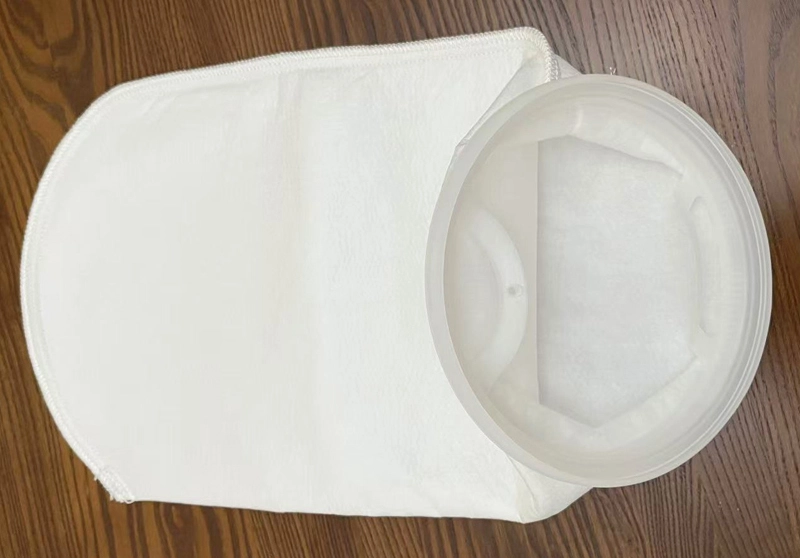

#1 Size 10 Micron Filter Bag – Polyester Felt, Polypropylene Ring, Industrial Liquid Filtration

10 Micron Filter Bag Product Overview:

In particular, achieve consistent, high-quality filtration with our precision-engineered filter bag.. Designed for industrial applications, these bags combine the exceptional dirt-holding capacity of polyester felt with the chemical resistance of a polypropylene ring, delivering both reliability and cost-effectiveness.

Benefits of Using a 10 Micron Filter Bag in Industrial Systems

Specifically, a 10 micron filter bag is widely used in industrial liquid filtration because it provides an excellent balance between fine particle removal and flow efficiency. In many systems, a 10 micron bag filter helps maintain stable performance while reducing equipment wear and contamination risks. Moreover, these 10 micron filter bags are ideal for applications where consistent water quality is required, such as chemical processing and wastewater treatment. Therefore, a bag filter 10 micron system ensures reliable operation with lower maintenance and improved process stability.

10 Micron Filter Bag Detailed Description:

Our #1 Size filter bags are crafted to provide superior performance in demanding environments. The polyester felt media ensures high dirt capture and retention, extending service life and reducing change-out frequency. Each bag features a rugged polypropylene ring with integrated handles, ensuring a secure seal and easy installation in compatible filter housings.

Moreover, engineered for durability and efficiency, these bags are ideal for a wide range of industrial liquid filtration processes, including reverse osmosis systems.

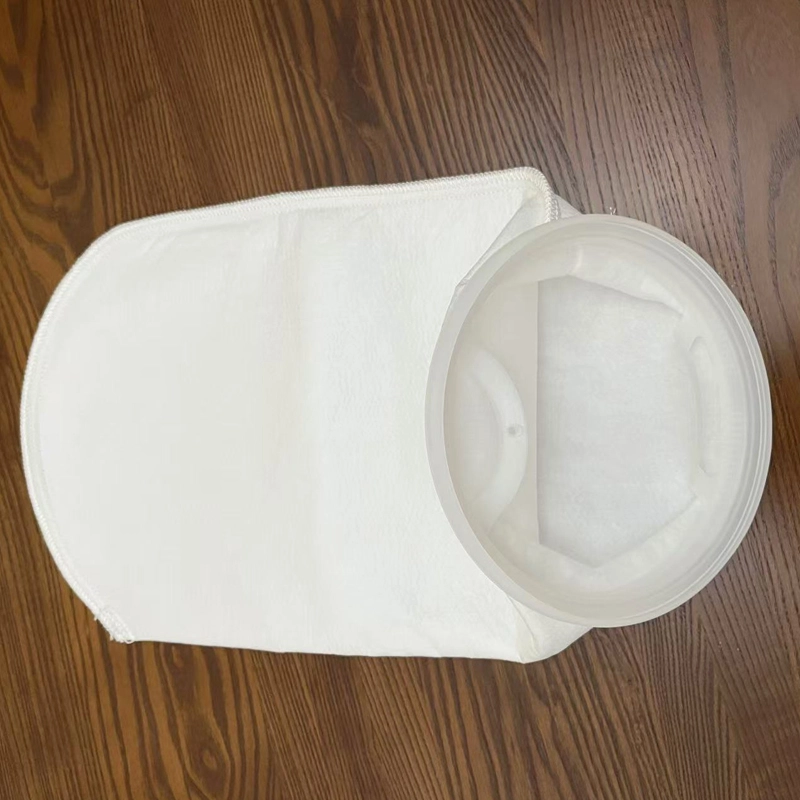

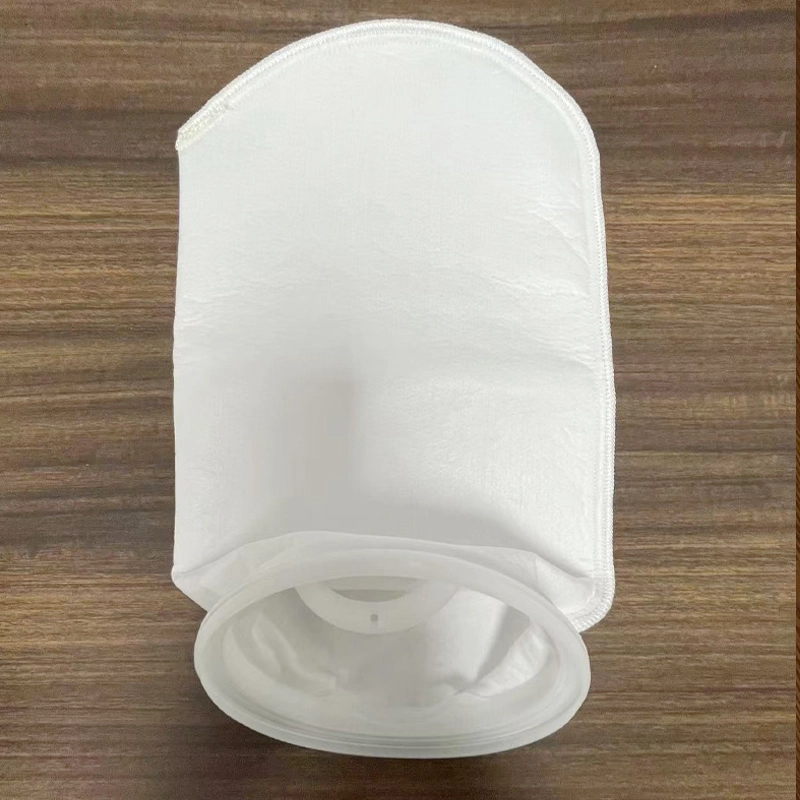

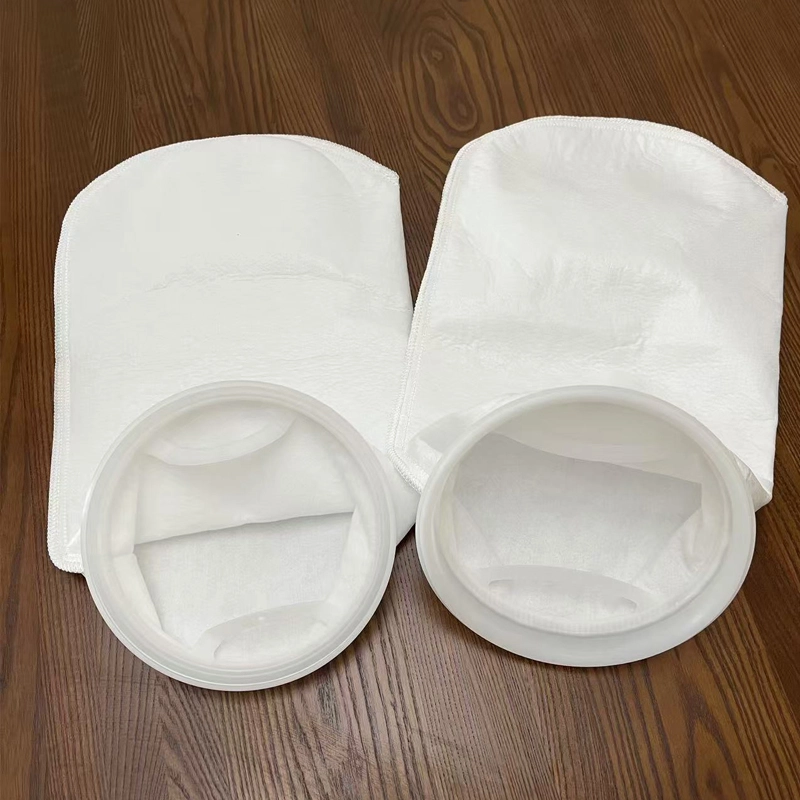

#1 Size 10 Micron Filter Bag

Features & Specifications:

Filtration Rating: 10 Micron
Dimensions: 7-1/16″ diameter x 16-1/2″ length (Standard #1 Size)
Materials: Media: Polyester Felt
Ring: Polypropylene (with Handles)
Surface Area: 2.0 square feet
Max. Operating Temperature: 275°F (135°C)
Seam Construction:
Packaging Options: Available in convenient quantities of 10, 25, or a case of 50 bags.

Industry Standard Sizing:

The filtration industry utilizes standardized sizing across whole house filtration systems, ensuring filter bags are interchangeable across housings from different manufacturers of the same designated size. BasideWT’s product line commonly includes bags in the following standard sizes:

• #1 Size Bag: 7-1/16″ diameter x 16-1/2″ length
• #2 Size Bag: 7-1/16″ diameter x 32″ length
• #4 Size Bag: 4-1/8″ diameter x 14″ length

Filter Bag Micron Rating:

Filter bags are classified by micron ratings and often used alongside filter housing systems, which indicate the size of particles the bag can capture. BasideWT offers a wide spectrum of filtration precision, with micron ratings available from 0.5 micron up to over 300 micron.

Welded vs. Sewn Seams:

This filter bag utilizes two robust seam construction methods to ensure maximum integrity:

Stitched Seam Construction: These bags are reinforced with a heavy-duty 5-thread stitching system, delivering reliable performance and durability under demanding conditions.

Welded Seam Construction: This advanced method eliminates needle holes, prevents potential bypass, and guarantees consistent filtration integrity throughout the bag.

Packaging Options:

Available in convenient quantities to suit various needs: 10 bags, 25 bags, or full cases of 50 bags.
