PRODUCT PARAMETERS

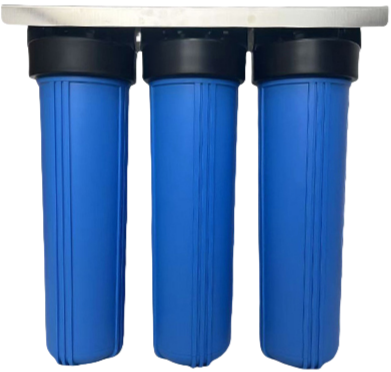

Product Name: Whole house well water filter System
Interface size: 1'' 1.5''
Number of Stages: 3 Stage
Maximum Incoming Pressure: 125 psi
Filter cartridge ( Length): 20"
Filter cartridge ( OD): 4.5"
Matching filter element: 20 inch filter element
Operating Temp: 0-52℃
Material: Food grade PP
Housing Size: 20" Big Blue
Application scenarios: Home and commercial
Applicable water quality: tap water, well water
Packing: Standard Exportation Package

REQUEST A QUOTE

Description

FAQs

Request A Quote

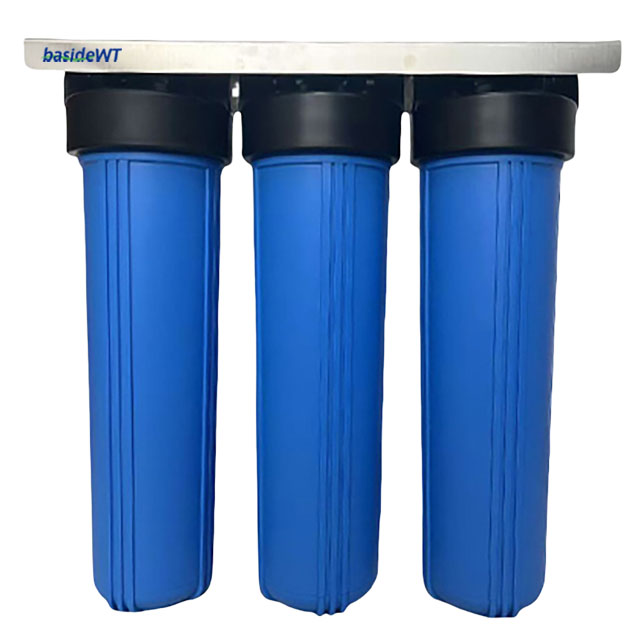

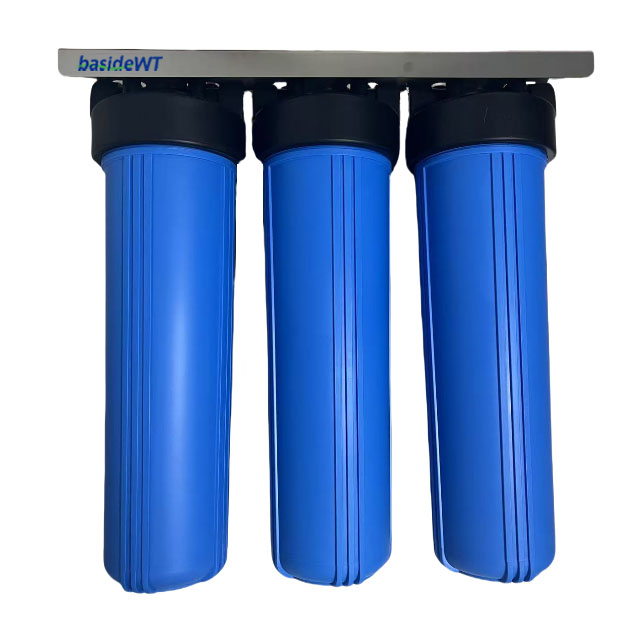

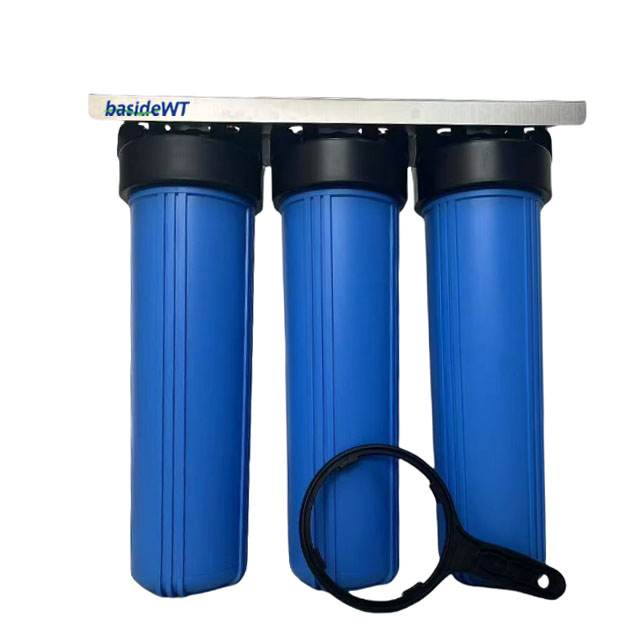

20-Inch Big Blue 3-Stage Whole house well water filter System – Advanced Carbon & Sediment Removal for Cleaner, Safer Water

BasideWT is a professional China manufacturer and supplier of whole house well water filter systems for residential, commercial, and OEM projects. Our 20-inch Big Blue filtration systems are engineered for reliable long-term performance, high flow rates, and easy cartridge replacement. We also support customized filtration configurations based on different well water conditions and customer requirements.

A whole house water filter system ensures clean, safe water throughout your home—protecting your family’s health, appliances, and plumbing. Unlike point-of-use filters, it treats all incoming water, eliminating contaminants before they reach your faucets, showers, and appliances.

Eliminates chlorine, chloramine, sediment & chemical contaminants,Optimized for municipal water treatment,Commercial-grade filtration capacity for entire household use. Designed for continuous daily operation with stable water flow.

Suitable Water Sources

This system is suitable for:

Private well water
Borehole water
Spring water
Farm water supplies
Rural residential water systems
Light commercial water treatment

Why You Need a Whole House well Water Filter System

✔ Comprehensive Filtration – Removes chlorine, sediment, heavy metals, and chemicals,Better-Tasting Water – Improves drinking water taste and odor, Softer Skin & Hair – Reduces dryness caused by chlorine and hard water,Appliance Protection – Prevents scale buildup in water heaters, dishwashers, and washing machines

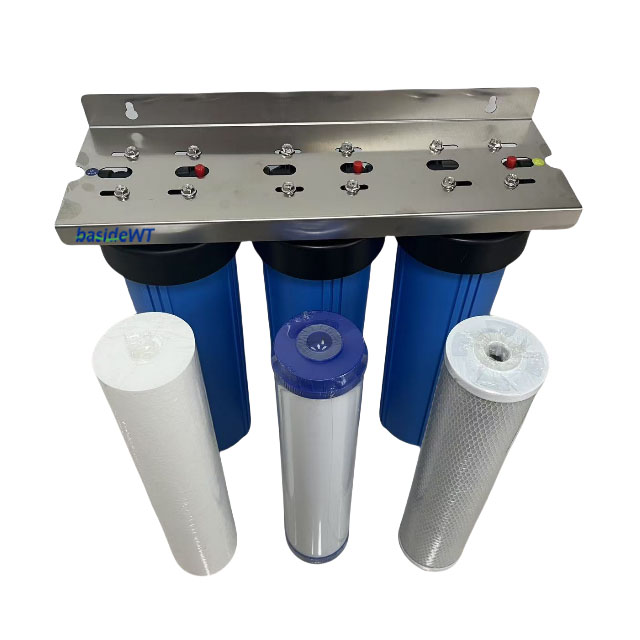

3 Stages of Whole House well Water Filter

5 Micron Depth Sediment Filtration Cartridge

Particle Retention: Effective down to 5 microns (µm)

Target Contaminants: Rust, sand, silt, pipe scale, and particulate matter

Advanced Design: Graded-density polypropylene matrix with:

Outer layer: 50µm pores for large debris

Middle layer: 15µm transitional filtration

Core layer: 5µm fine particle capture

System Protection: Prevents appliance wear and extends carbon filter lifespan by 30-40%

Premium Carbon Block Water Filter – Eliminates Chlorine, Bad Tastes & Odors

This high-efficiency carbon block filter removes chlorine, chloramines, and unpleasant odors from your water, delivering crisp, clean-tasting hydration straight from every tap. Unlike standard filters, it also reduces turbidity (cloudiness), ensuring visibly clearer water for drinking, cooking, and bathing.

Why It’s Better:
✔ Made from 100% coconut shell carbon – a renewable, eco-friendly material,Superior chemical absorption vs. traditional coal-based carbon filters,Longer lifespan & better flow rate due to optimized carbon density

This high-performance carbon block filter delivers industry-leading water purification, certified to treat over 240,000 gallons while effectively removing:

✔ Chlorine & chloramine (no more chemical aftertaste),VOCs (benzene, toluene, and other volatile organics),100+ trace chemicals (pesticides, herbicides, and industrial pollutants)

Why Professionals Choose It:
→ 100% coconut shell carbon – superior adsorption vs. coal-based filters,Extended 240K-gallon capacity – reduces maintenance frequency,NSF/ANSI 42 & 53 certified – proven reduction of chlorine and health-related contaminants

Perfect For:
• Homes with strong chlorine-treated municipal water,Well water needing chemical contaminant removal,Commercial applications requiring high-capacity filtration

Who Is This System Designed For?

This system is recommended for:

Homeowners using private wells
Farms and rural properties
Small commercial buildings
Hotels and guest houses
Restaurants
Villas
Schools
Light industrial facilities

Whole house well water filter System Specifications

Product Name	Whole house well water filter System
Housing Size:	20″ Big Blue
In/Out Connections:	1″ Female NPT
Filter Cartridge	5 Micron Sediment Carbon Block HP Carbon Block
Filter cartridge ( Length)	20″
Filter cartridge ( OD)	4.5″
Number of Stages:	3 Stage
Maximum Incoming Pressure	125 psi
Operating Temp.	0-52℃
Advantage	High Filtration Efficiency

Whole house well water filter System: Key Advantages

Advanced Multi-Stage Filtration – Removes sediment, chlorine, heavy metals, and chemicals

✅ High-Capacity Coconut Shell Carbon – Superior chemical adsorption vs. standard filters,✅ Durable Big Blue Housings – Corrosion-resistant, NSF-certified components,✅ Smart Flow Design – Maintains strong water pressure (up to 15 GPM)

Why Choose BasideWT as Your China Supplier?

Professional technical consultation before sales and responsive after-sales support

Professional China manufacturer of whole house water filtration systems

OEM & ODM customization available

Strict quality inspection before shipment

Bulk order support for distributors and wholesalers

Fast production and worldwide shipping

Premium Water Purification for Your Entire Household

Crystal-Clear Drinking Water at Every Faucet

Transform Meals Through Cleaner Cooking

Nourish Your Little One with Healthier Water

Pure Water Showers – No Chemical Irritants

Get More Years + Better Results from Your Appliances

Shield Your Machines, Brighten Your Fabrics

Best Whole House Well Water Filter System: How to Choose the Right Setup

Finding the best whole house well water filter system starts with a water test. Test your well water before buying anything. This identifies your specific contaminants. Common well water problems include sediment, iron, bacteria, and nitrates. Each contaminant needs a targeted treatment stage. A 3-stage carbon and sediment system handles most of these effectively.

The well water whole house filter system on this page suits moderate well water conditions. It removes sediment down to 5 microns. It also removes chlorine, VOCs, and chemical contaminants. However, it does not remove dissolved iron or bacteria. Therefore, test your iron level before selecting this system. Iron above 0.3 ppm needs a dedicated iron filter upstream.

Flow rate is the next key factor. This system delivers up to 15 GPM. That suits most homes with 3 or more bathrooms. A family of four needs at least 10 GPM at peak usage. The 1-inch NPT connections fit standard residential plumbing directly. Similar 3-stage systems available in the market follow the same filtration principle. The media types and micron ratings may vary. Always compare cartridge lifespan and replacement cost before deciding. For homes needing advanced purification beyond sediment and carbon, a well water reverse osmosis system handles dissolved solids, nitrates, and heavy metals. Moreover, adding a UV water sterilizer after this filter system eliminates bacteria and viruses. UV disinfection adds microbiological safety without chemicals.

If you are unsure which filtration configuration is suitable for your water source, BasideWT can recommend an appropriate system based on your water analysis report or contaminant data.

Big Blue Fat Level 3 stage House Water Filter System – FAQ

1. What does the Big Blue Fat Level 3 system filter?

The Level 3 system provides comprehensive filtration:

1: Sediment filter (removes dirt, rust, sand)

2: Activated carbon (reduces chlorine, chemicals, bad tastes/odors)

3: Fine particulate/CTO carbon block (further polishes water for cleaner, better-tasting water)

2. What’s the filtration capacity?

Flow Rate: Up to 15 GPM (gallons per minute)

Filter Lifespan: 6–12 months (depending on water quality and usage)

Housing: Durable 20″ Big Blue fat design for high capacity

3. What contaminants does it remove?

Sediments (sand, rust, particles)

Chlorine & chloramines

Bad tastes & odors

Some organic chemicals & VOCs

(Note: Does NOT remove dissolved salts, heavy metals, or microbes. For advanced purification, consider a reverse osmosis (RO) system.)

4. Is it easy to install?

Designed for DIY installation with standard 1″ NPT inlet/outlet.

Includes brackets for wall mounting.

No electrical connection required.

5. How often should I replace the filters?

Sediment filter: Every 6 months (or sooner if water pressure drops).

Carbon filters: Every 9–12 months.

6. Will it reduce water pressure?

Minimal pressure drop (≤ 5 PSI) when filters are new. If pressure decreases significantly, check for clogged filters.

7. Does it work with well water?

Yes, but for heavy sediment or iron, a pre-filter or additional treatment may be needed. Test water quality first.

8. What maintenance is required?

Regular filter replacements

Annual housing O-ring inspection/lubrication

Flush system after filter changes

Recommended Installation Position

Install the system immediately after the pressure tank or main water inlet. This allows filtered water to reach every tap, shower, appliance, and water outlet throughout the property.

Whole House Water Filtration: Expert Tips to Avoid Costly Mistakes

⚠️ Common Mistakes to Avoid

Skipping a Sediment Filter → Clogs carbon filters faster,Ignoring Water Testing → Choose the right system for your contaminants,Buying Undersized → Check flow rate (GPM) for your household size

🛠️ Installation Checklist

🔹 Locate main water line entry point🔹 Shut off water supply & drain pipes🔹 Install housing units (sediment → carbon → optional UV)🔹 Flush system for 10–15 minutes before use

💡 Pro Tip: For well water, add a UV purifier to kill bacteria, or a water softener if hardness exceeds 120 ppm.

🏡 Perfect For:

Families wanting safe, great-tasting water,Homes with chlorinated city water or well water concerns,Anyone tired of spotty dishes, dry skin, or frequent plumbing issues

Complete Well Water Treatment Solution

A whole house water filter system for well water works best in layers. This 3-stage system is the first layer. It handles sediment and chemical contaminants. However, private wells often need more protection. Bacteria, iron, and hardness minerals are common. Each needs its own treatment stage. Therefore, think of this system as the foundation. Build additional stages around it based on your water test results.

Iron removal is the most common add-on for well water users. Iron stains sinks, laundry, and fixtures. It also damages carbon filters quickly. Therefore, always place an iron removal stage before this sediment and carbon system. This protects your carbon cartridges and extends their life. Furthermore, hard water above 120 ppm needs a softener after the sediment pre-filter. This prevents scale buildup in appliances and plumbing.

The best whole house water filter system for well water combines sediment, iron, carbon, softening, and UV stages in sequence. Each stage protects the one after it. This reduces total maintenance cost over time. For homes that also need pure drinking water at the kitchen tap, a water softener and reverse osmosis system adds a final polishing stage. The softener protects the RO membrane. The RO removes dissolved solids at the point of use. Moreover, replacing filter cartridges on time is critical. A water filter cartridge replacement on schedule maintains full filtration performance. A spent cartridge allows contaminants through and harms downstream equipment.

Our engineering team provides installation guidance, cartridge selection assistance, and system configuration recommendations for residential and commercial customers.

Request a Custom Solution

Need a customized whole house well water filter system for your project?

Contact BasideWT today for OEM manufacturing, technical consultation, wholesale pricing, and fast global delivery. Our engineers will recommend the right filtration solution based on your water quality and project requirements.

FAQs

How do I know which system is right for my home?

Choosing the perfect water treatment system depends on your specific water quality, household size, and needs. We make it easy with our 3-step process:

Water quality testing – analyze your water for contaminants, hardness, and other factors.

Personalized Consultation – Our experts recommend systems based on your results, budget, and water usage.

Customized Solution – From whole-house filtration to targeted solutions (e.g., RO for drinking water, softeners for hard water), we tailor the system to your home.

How to Measure Your Home’s Water Flow Rate？

To determine your water flow rate in gallons per minute (GPM), follow these simple steps:

Prepare for Testing:

Prepare for Testing:
- Ensure all water fixtures in your home are turned off
- Select the faucet closest to your main water supply line (usually the kitchen sink or an outdoor spigot)
Conduct the Test:
- Fully open the selected faucet
- Time how many seconds it takes to fill a 1-gallon container
- Repeat the test 2-3 times for accuracy
Calculate Your Flow Rate:
Use this formula: Flow Rate (GPM) = 60 ÷ Fill Time (seconds)Example Calculation:
- If your 1-gallon container fills in 15 seconds
- 60 ÷ 15 = 4 GPM

For more precise measurements or whole-home flow rate analysis, contact our water system specialists. We can help you determine if your current flow rate meets the requirements for any water treatment systems you’re considering.

How do I troubleshoot low water pressure from my system?

1. Check Multiple Fixtures

Test water pressure at different faucets, showers, and appliances (e.g., kitchen sink, bathroom sink, outdoor hose).

If only one fixture has low pressure, the problem is likely localized (clogged aerator, faulty valve, or pipe issue).

If all fixtures have low pressure, the issue is systemic (main supply, pressure regulator, or water heater).

2. Inspect the Aerator or Showerhead

Unscrew the faucet aerator or showerhead and check for mineral deposits, debris, or rust.

Soak it in vinegar overnight to dissolve buildup, then rinse and reattach.

3. Check the Main Shutoff Valve

Locate the main water shutoff valve (usually near the water meter or where the main line enters the house).

Ensure it’s fully open (turn clockwise to close, counterclockwise to open).

What contaminants does your water treatment system remove?

1. Activated Carbon Filters

Removes:
✅ Chlorine & chloramines
✅ Bad tastes & odors (e.g., sulfur)
✅ Volatile Organic Compounds (VOCs)
✅ Some pesticides & herbicides
❌ Does not remove heavy metals, dissolved minerals, or microbes

2. Reverse Osmosis (RO) Systems

Removes:
✅ Heavy metals (lead, arsenic, mercury, cadmium)
✅ Dissolved salts (fluoride, nitrates, sulfates)
✅ Microplastics & sediment
✅ Bacteria & viruses (if combined with UV)
✅ Chlorine & chemicals (with carbon pre-filter)
❌ May remove beneficial minerals (can be remineralized)

3. Water Softeners (Ion Exchange)

Targets:
✅ Calcium & magnesium (hardness)
✅ Low levels of iron & manganese
❌ Does not remove bacteria, chlorine, or heavy metals

4. UV Purifiers

Kills:
✅ Bacteria (E. coli, coliform)
✅ Viruses (rotavirus, hepatitis)
✅ Protozoa (Giardia, Cryptosporidium)
❌ Does not remove chemicals, metals, or sediment

5. Sediment Filters

Removes:
✅ Sand, rust, dirt
✅ Large particles & silt
❌ Does not remove dissolved contaminants

6. Whole-House Filtration Systems

Combines multiple methods (carbon + sediment + UV) for broad protection.

What’s the difference between UV, RO, and activated carbon filtration?
