Water Softener Brine Tanks & Blow Molding Square Brine Tanks

PRODUCT PARAMETERS

Product Name: Water Softener Brine Tank
Material: PE
Usage: water softener
Color: White,Blue,Grey
Shape: Square / Round
Application:water treatment

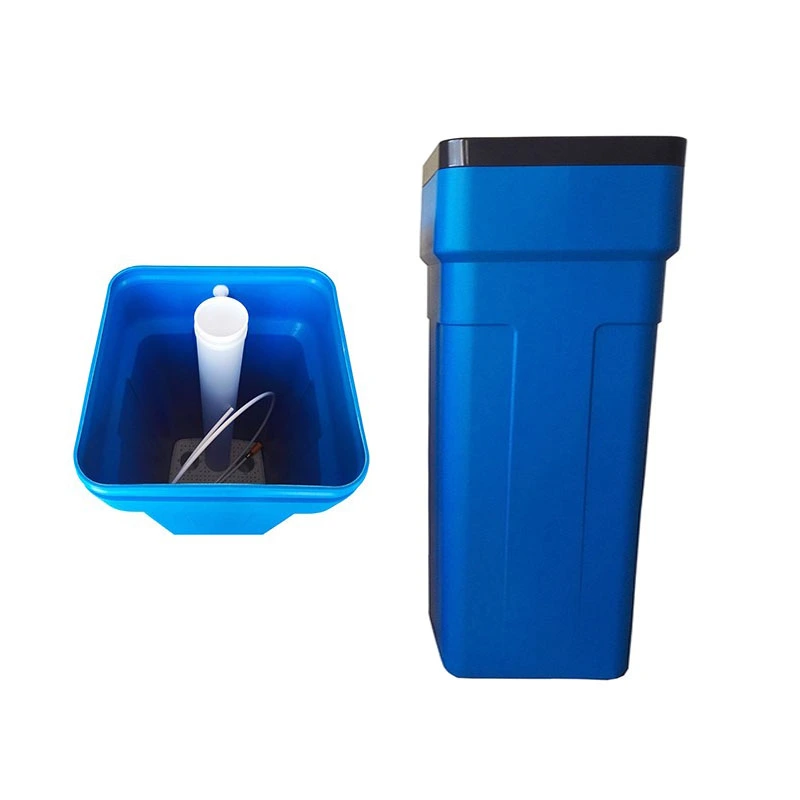

Set consist of: Brine well, grid, overflow connection, brine valve
Capacity：15L- 3000L
Packing: Standard Exportation Package

REQUEST A QUOTE

Description

FAQs

Request A Quote

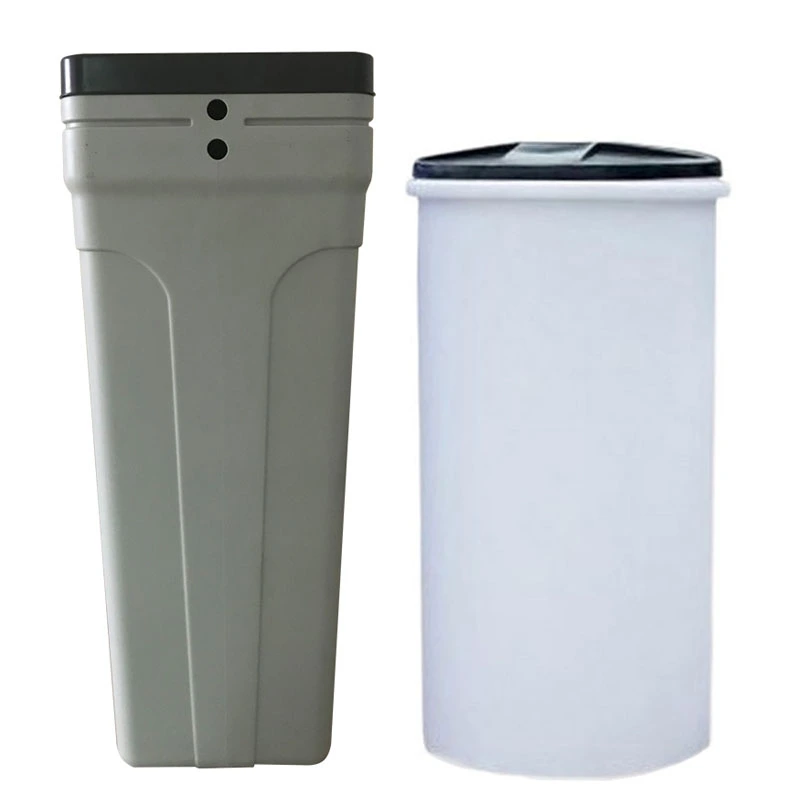

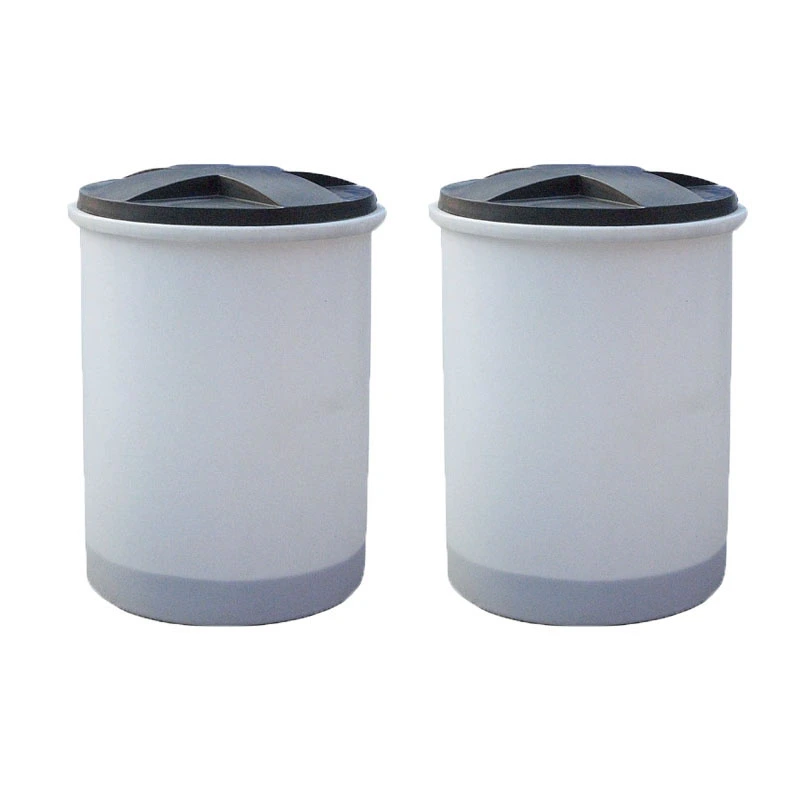

Brine Tanks for your water softener

We use rotational molding (rotomolding) to manufacture our brine tanks, creating a seamless, one-piece construction.This monolithic design is inherently robust. This rugged construction delivers exceptional impact resistance and long-term durability; it also eliminates the risk of leaks from welded seams.

Unmatched Structural Integrity: The rounded shape naturally resists pressure and prevents stress cracking, making it ideal for long-term, heavy-duty use.
Seamless and Leak-Proof: Without welded seams, these tanks have superior impact resistance and are virtually impervious to leaks.
Durable Material: Commonly made from cross-linked polyethylene, they offer excellent chemical resistance to salt brine.

Capacity	Size DxH(MM)	Description
15L	220X480	PE, Round, white
25L	260X480
60L	330X700
100L	380X860
200L	520X1030
300L	570X1150
500L	710X1250
800L	870X1350
1000L	1100X1350
1500L	1150X1600
2000L	1270X1650
3000L	1500X1700

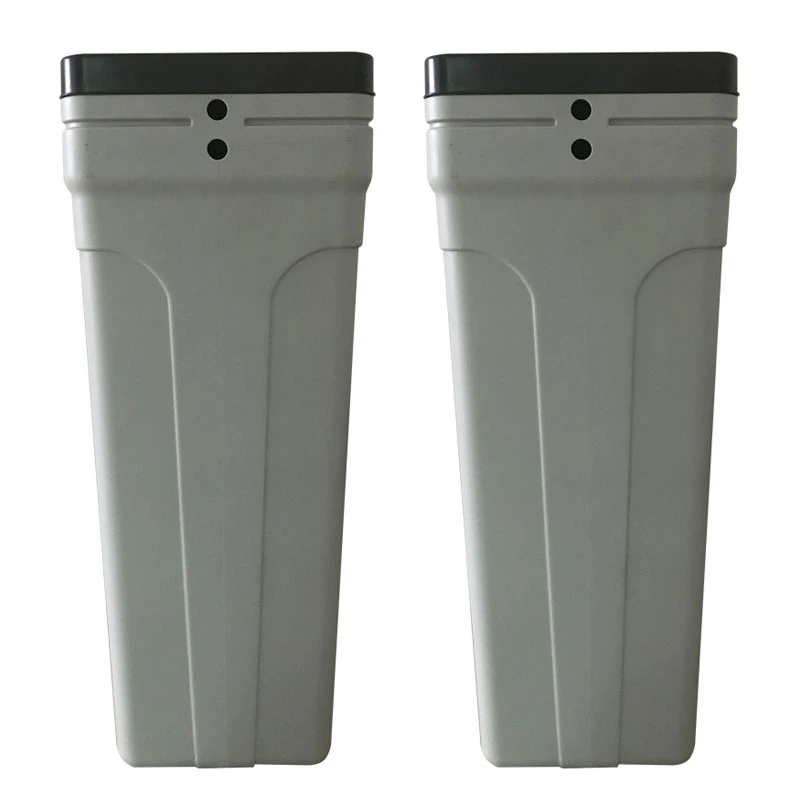

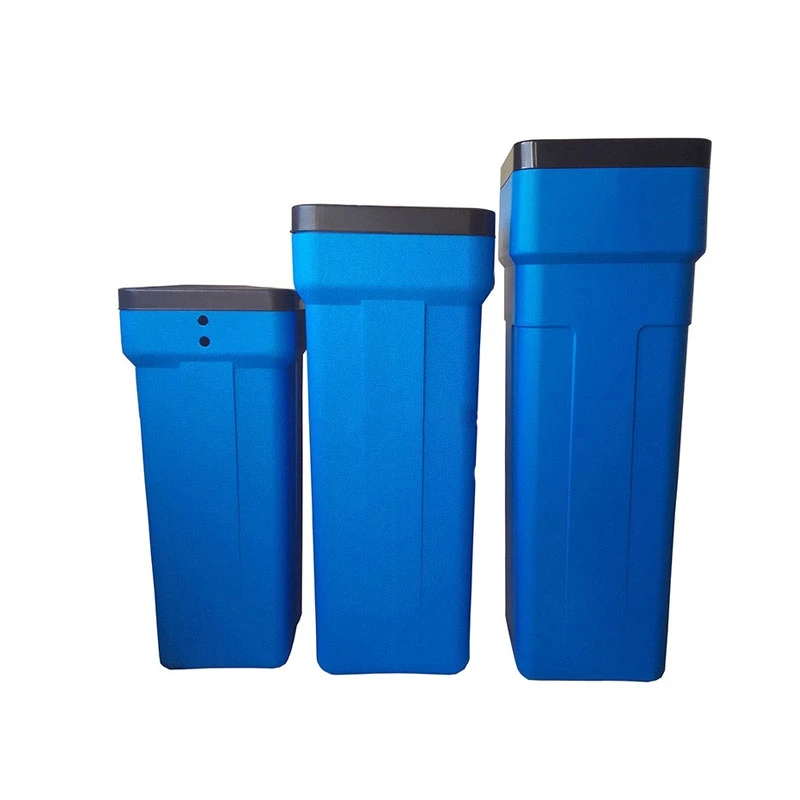

Blow Molding Square Brine Tanks: Optimized for Space and Value

For installations where space is a premium, our square brine tanks, created through the blow molding process, provide a perfect fit.

Space-Efficient Design: The square profile allows the tank to be placed flush against walls or in corners, maximizing your utility area.
Lightweight and Sturdy: Blow molding produces a lightweight yet robust tank that is easy to handle during installation.
Cost-Effective Solution: This efficient manufacturing process offers a durable and reliable brine tank at a highly competitive price point.

Item	Dimensions(mm)	Description
25L-F	250250475	PE ,Square,Blue Grey
70L-F	330330885
100L-F	380380885
150L-F	4504501000
70L	330330835
100L	380380835

Brine Tanks Application:

The brine tank is essential for water softener system operation with two primary applications:

• Resin Regeneration: It holds the salt solution used to regenerate the ion exchange resin in both industrial and residential water softeners.

• RO Pretreatment: It functions as a crucial pretreatment component for Reverse Osmosis (RO) desalination systems, enhancing overall efficiency.

SEND US AN EMAILFeel free to send us an email and we will reply to you as soon as possible.

CONTACT INFOWe are looking forward to hearing from you!

TEL: 86 13548779363
Email: sales@basidewt.com
Business hours: Monday to Friday (9AM – 10PM)
Address: Aibang Technology Industrial Park, No. 559 Yun Qi Lu，Yuelu District, Changsha, Hunan, China

FAQs

How do I know which system is right for my home?

Choosing the perfect water treatment system depends on your specific water quality, household size, and needs. We make it easy with our 3-step process:

Water quality testing – analyze your water for contaminants, hardness, and other factors.

Personalized Consultation – Our experts recommend systems based on your results, budget, and water usage.

Customized Solution – From whole-house filtration to targeted solutions (e.g., RO for drinking water, softeners for hard water), we tailor the system to your home.

How to Measure Your Home’s Water Flow Rate？

To determine your water flow rate in gallons per minute (GPM), follow these simple steps:

Prepare for Testing:

Prepare for Testing:
- Ensure all water fixtures in your home are turned off
- Select the faucet closest to your main water supply line (usually the kitchen sink or an outdoor spigot)
Conduct the Test:
- Fully open the selected faucet
- Time how many seconds it takes to fill a 1-gallon container
- Repeat the test 2-3 times for accuracy
Calculate Your Flow Rate:
Use this formula: Flow Rate (GPM) = 60 ÷ Fill Time (seconds)Example Calculation:
- If your 1-gallon container fills in 15 seconds
- 60 ÷ 15 = 4 GPM

For more precise measurements or whole-home flow rate analysis, contact our water system specialists. We can help you determine if your current flow rate meets the requirements for any water treatment systems you’re considering.

How do I troubleshoot low water pressure from my system?

1. Check Multiple Fixtures

Test water pressure at different faucets, showers, and appliances (e.g., kitchen sink, bathroom sink, outdoor hose).

If only one fixture has low pressure, the problem is likely localized (clogged aerator, faulty valve, or pipe issue).

If all fixtures have low pressure, the issue is systemic (main supply, pressure regulator, or water heater).

2. Inspect the Aerator or Showerhead

Unscrew the faucet aerator or showerhead and check for mineral deposits, debris, or rust.

Soak it in vinegar overnight to dissolve buildup, then rinse and reattach.

3. Check the Main Shutoff Valve

Locate the main water shutoff valve (usually near the water meter or where the main line enters the house).

Ensure it’s fully open (turn clockwise to close, counterclockwise to open).

What contaminants does your water treatment system remove?

1. Activated Carbon Filters

Removes:
✅ Chlorine & chloramines
✅ Bad tastes & odors (e.g., sulfur)
✅ Volatile Organic Compounds (VOCs)
✅ Some pesticides & herbicides
❌ Does not remove heavy metals, dissolved minerals, or microbes

2. Reverse Osmosis (RO) Systems

Removes:
✅ Heavy metals (lead, arsenic, mercury, cadmium)
✅ Dissolved salts (fluoride, nitrates, sulfates)
✅ Microplastics & sediment
✅ Bacteria & viruses (if combined with UV)
✅ Chlorine & chemicals (with carbon pre-filter)
❌ May remove beneficial minerals (can be remineralized)

3. Water Softeners (Ion Exchange)

Targets:
✅ Calcium & magnesium (hardness)
✅ Low levels of iron & manganese
❌ Does not remove bacteria, chlorine, or heavy metals

4. UV Purifiers

Kills:
✅ Bacteria (E. coli, coliform)
✅ Viruses (rotavirus, hepatitis)
✅ Protozoa (Giardia, Cryptosporidium)
❌ Does not remove chemicals, metals, or sediment

5. Sediment Filters

Removes:
✅ Sand, rust, dirt
✅ Large particles & silt
❌ Does not remove dissolved contaminants

6. Whole-House Filtration Systems

Combines multiple methods (carbon + sediment + UV) for broad protection.

What’s the difference between UV, RO, and activated carbon filtration?

PRODUCT PARAMETERS

Brine Tanks for your water softener

Blow Molding Square Brine Tanks: Optimized for Space and Value

Brine Tanks Application:

SEND US AN EMAILFeel free to send us an email and we will reply to you as soon as possible.

CONTACT INFOWe are looking forward to hearing from you!

FAQs

REQUEST A QUOTE

RELATED PRODUCTS

SEKO Tekna APG600/APG803 AKS603 – Automatic High-Efficiency Electromagnetic Diaphragm Metering Dosing Pump for Water Treatment Systems

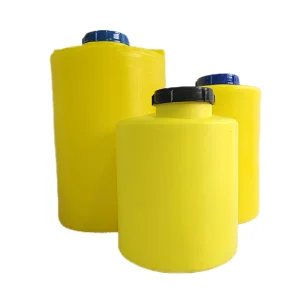

High Quality PE Industrial Storage Water tank Plastic Chemical Dosing tank For Dosing System
