PRODUCT PARAMETERS

Product Name: Water Filter Housing
Material: Plastic PP
Size: 4.5" x 20"
Inlet/Outlet: 3/4" 1'' and 1.5''
Connector Material: ‎Brass, Plastic
Product benefits: Reduces Sediment
Special Features: ‎20 Inch Big Blue Housing, Blue Color
Function: Remove Impurities
Included components: Mounting bracket and key for replacing the cartridge
Installation Type: Freestanding" or "Under The Sink
Brand Name: BasideWT
Packing: Standard Exportation Package

REQUEST A QUOTE

DOWNLOAD BROCHURE

Description

FAQs

Request A Quote

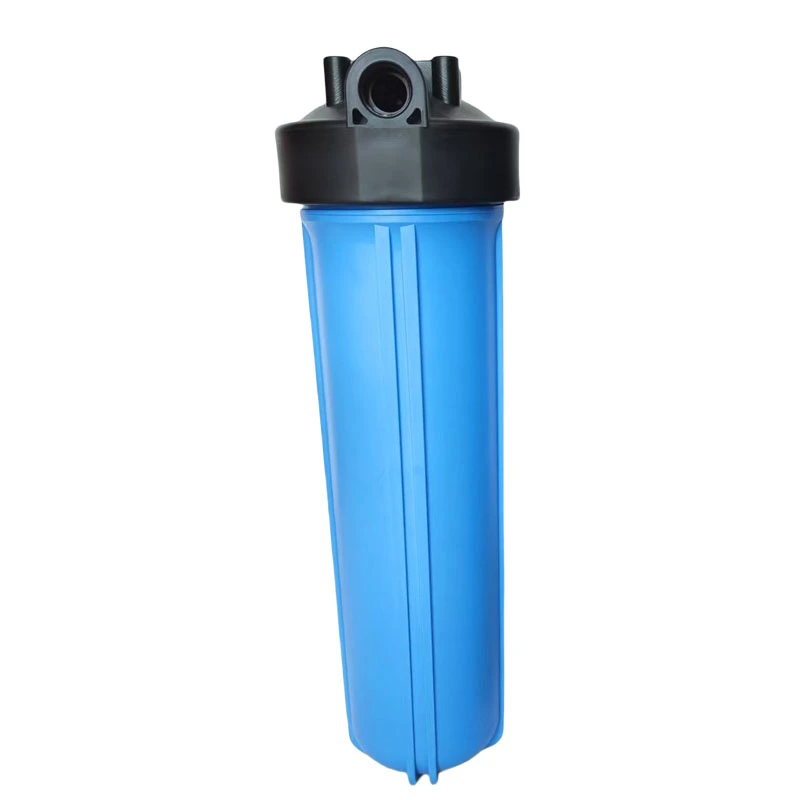

20-Inch Big Whole House Water Filter Housing Blue (Single Unit)

✔ High-Capacity | Standard 4.5″ Cartridge Compatible | 90 PSI Rated

🚀 Key Features

✅ Jumbo 20″ Housing – Fits all standard 4.5″ diameter cartridges (PP, carbon block, etc.)
✅ 1″ NPT Ports – Supports high flow rates (5-15 GPM depending on water pressure)
✅ Pressure Release Button – Safely depressurizes system for cartridge changes
✅ Complete Installation Kit – Includes metal bracket, plastic wrench, and mounting screws

📊 Water Filter Housing Blue Technical Specifications

Parameter	Specification
Max Pressure	90 PSI (6.2 bar)
Temperature Range	40-110°F (5-45°C)
Flow Rate	5-15 GPM*
Dimensions	4.5″ OD x 20″ Height
Inlet/Outlet	1″ 1.5‘’NPT Female Threads
Shelf Life	5 Years

*Flow varies with feed pressure and cartridge type

🛠️ What’s Included

1 x 20″ Blue Filter Housing
1 x Plastic Wrench
1 x Metal Mounting Bracket
1 x O-Ring (Pre-installed)
4 x Stainless Steel Mounting Screws

Compatible Filter Cartridges

1. PP Spun Sediment Filter ($12.99)

Removes: Sand, dirt, rust particles
Lifespan: 6 months (50,000 gal typical)

2. Carbon Block Filter ($19.99)

Removes: Chlorine, VOCs, bad tastes/odors
Lifespan: 6 months (30,000 gal typical)

⚠ Note: Actual cartridge life depends on water quality and usage. Test water pressure monthly!

⚡ Pro Installation Tips

Lubricate O-Ring – Apply food-grade silicone grease (included)
Pressure Check – Install pressure regulator if >80 PSI (ideal: 60 PSI)
Winter Care – Drain housing if temps drop below 40°F
Tool Use – Tighten with provided wrench (1/4 turn past hand-tight)
Leak Test – Run water for 5 mins before final mounting

💡 Watch Our Installation Video → Search “Big Blue 20″ Filter Install” on YouTube

❓ Frequently Asked Questions

Q: Will this fit my existing 4.5″ cartridges?
A: Yes! Standard industry size compatibility.

Q: How often should I change cartridges?
A: Every 6 months or when flow rate drops 30%.

Q: Can I use this for well water?
A: Absolutely – pair with 5μm PP filter for best results.

⚠ Critical Warnings

DO NOT exceed 90 PSI – install pressure reducer if needed
ALWAYS depressurize system before opening (use release button)
NEVER expose to freezing temperatures – cracks may occur

FAQs

How do I know which system is right for my home?

Choosing the perfect water treatment system depends on your specific water quality, household size, and needs. We make it easy with our 3-step process:

Water quality testing – analyze your water for contaminants, hardness, and other factors.

Personalized Consultation – Our experts recommend systems based on your results, budget, and water usage.

Customized Solution – From whole-house filtration to targeted solutions (e.g., RO for drinking water, softeners for hard water), we tailor the system to your home.

How to Measure Your Home’s Water Flow Rate？

To determine your water flow rate in gallons per minute (GPM), follow these simple steps:

Prepare for Testing:

Prepare for Testing:
- Ensure all water fixtures in your home are turned off
- Select the faucet closest to your main water supply line (usually the kitchen sink or an outdoor spigot)
Conduct the Test:
- Fully open the selected faucet
- Time how many seconds it takes to fill a 1-gallon container
- Repeat the test 2-3 times for accuracy
Calculate Your Flow Rate:
Use this formula: Flow Rate (GPM) = 60 ÷ Fill Time (seconds)Example Calculation:
- If your 1-gallon container fills in 15 seconds
- 60 ÷ 15 = 4 GPM

For more precise measurements or whole-home flow rate analysis, contact our water system specialists. We can help you determine if your current flow rate meets the requirements for any water treatment systems you’re considering.

How do I troubleshoot low water pressure from my system?

1. Check Multiple Fixtures

Test water pressure at different faucets, showers, and appliances (e.g., kitchen sink, bathroom sink, outdoor hose).

If only one fixture has low pressure, the problem is likely localized (clogged aerator, faulty valve, or pipe issue).

If all fixtures have low pressure, the issue is systemic (main supply, pressure regulator, or water heater).

2. Inspect the Aerator or Showerhead

Unscrew the faucet aerator or showerhead and check for mineral deposits, debris, or rust.

Soak it in vinegar overnight to dissolve buildup, then rinse and reattach.

3. Check the Main Shutoff Valve

Locate the main water shutoff valve (usually near the water meter or where the main line enters the house).

Ensure it’s fully open (turn clockwise to close, counterclockwise to open).

What contaminants does your water treatment system remove?

1. Activated Carbon Filters

Removes:
✅ Chlorine & chloramines
✅ Bad tastes & odors (e.g., sulfur)
✅ Volatile Organic Compounds (VOCs)
✅ Some pesticides & herbicides
❌ Does not remove heavy metals, dissolved minerals, or microbes

2. Reverse Osmosis (RO) Systems

Removes:
✅ Heavy metals (lead, arsenic, mercury, cadmium)
✅ Dissolved salts (fluoride, nitrates, sulfates)
✅ Microplastics & sediment
✅ Bacteria & viruses (if combined with UV)
✅ Chlorine & chemicals (with carbon pre-filter)
❌ May remove beneficial minerals (can be remineralized)

3. Water Softeners (Ion Exchange)

Targets:
✅ Calcium & magnesium (hardness)
✅ Low levels of iron & manganese
❌ Does not remove bacteria, chlorine, or heavy metals

4. UV Purifiers

Kills:
✅ Bacteria (E. coli, coliform)
✅ Viruses (rotavirus, hepatitis)
✅ Protozoa (Giardia, Cryptosporidium)
❌ Does not remove chemicals, metals, or sediment

5. Sediment Filters

Removes:
✅ Sand, rust, dirt
✅ Large particles & silt
❌ Does not remove dissolved contaminants

6. Whole-House Filtration Systems

Combines multiple methods (carbon + sediment + UV) for broad protection.

What’s the difference between UV, RO, and activated carbon filtration?
