What Is a Deionized Water System? Everything You Need to Know

Water looks simple. Clear, odorless, and everywhere. But not all water is equal, and industries that depend on ultra-pure water know this better than anyone.

If you have ever asked yourself, what is a deionized water system, you are already thinking like a smart buyer. This guide breaks down how these systems work, what they contain, and why so many manufacturers, laboratories, and electronics plants rely on them daily.

By the end, you will understand exactly how a deionized water system removes unwanted ions and why it plays such a critical role in modern industrial processes. For a deeper walkthrough of selecting a full setup, check out our Complete Deionized Water System Buying Guide.

What Is a Deionized Water System?

A deionized water system is equipment designed to remove charged particles, called ions, from water. These ions include calcium, magnesium, sodium, chloride, and other dissolved minerals.

Ordinary tap water carries a mix of these ions. They come from soil, pipes, and natural mineral deposits. While harmless for drinking, they cause serious problems in sensitive industrial processes.

A DI water system uses ion exchange resin to trap these particles. The result is water with extremely low conductivity and mineral content. Many facilities call this “pure water” or “high purity water” because it behaves so differently from tap water.

Unlike simple filtration, which removes physical debris, deionization works at a chemical level. It targets the actual charged particles floating invisibly in the water. This distinction matters a lot in industries where even trace minerals can ruin a product batch.

Why Purity Levels Matter So Much

Think about a computer chip manufacturer. A single mineral deposit on a silicon wafer can cause a defect. That defect might ruin an entire production run.

This is why electronics companies, pharmaceutical labs, and power plants all lean on deionized water instead of regular filtered water. The stakes are simply too high for anything less.

DI Water vs Ordinary Filtered Water

Standard filtration handles dirt, sediment, and larger particles quite well. However, it leaves dissolved minerals completely untouched.

Those minerals stay invisible until they cause a problem. They might leave spots on glassware, scale inside a boiler, or interfere with a chemical reaction in a lab.

Deionization solves this gap. It targets what filtration cannot see or catch, giving industries a more complete purification approach for sensitive processes.

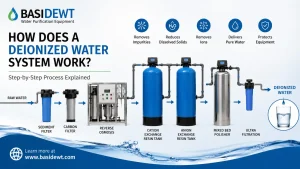

How Does a Deionized Water System Remove Ions?

The process behind a water deionization system relies on a chemical reaction called ion exchange. It sounds technical, but the concept is fairly straightforward once you see it in action.

Water flows through tanks filled with resin beads. These beads carry either a positive or negative charge, depending on their type. As water passes through, the resin swaps its own harmless ions for the unwanted minerals in the water.

Cation and Anion Exchange Explained

Two resin types handle this job together.

Cation resin attracts positively charged ions, such as calcium and magnesium. It replaces them with hydrogen ions.

Anion resin attracts negatively charged ions, such as chloride and sulfate. It replaces them with hydroxide ions.

When hydrogen and hydroxide ions combine, they form pure water molecules. This is the elegant chemistry that makes deionization so effective.

Measuring Purity: Resistivity and Conductivity

Technicians measure water purity using resistivity, expressed in megohms. Pure water resists electrical current because it lacks free-floating ions to carry a charge.

Tap water conducts electricity easily due to its mineral content. Deionized water, however, resists conductivity almost completely once the process finishes. This measurement helps operators confirm the system is performing correctly and signals when resin needs attention.

What Happens When Resin Becomes Exhausted

Resin beads can only hold so many ions before they become saturated. Once exhausted, they stop removing minerals effectively, and water purity begins to drop noticeably.

At this stage, operators either regenerate the resin using acid and caustic solutions or replace it entirely with fresh material. Regeneration restores the resin’s original charge, allowing it to keep working for additional cycles.

Facilities running high-volume operations often track resin performance closely. Waiting too long to regenerate or swap resin risks sending lower-quality water downstream without anyone noticing right away.

Main Components of a Deionized Water System

Every DI water system relies on a handful of essential parts working together. Understanding these components helps you evaluate equipment more confidently.

Pre-Filtration Stage

Before water reaches the resin tanks, it usually passes through sediment and carbon filters. These filters remove larger particles, chlorine, and organic material that could damage resin beads over time.

Skipping this stage often shortens resin life and increases maintenance frequency. Most reputable systems, including our Water Filtration Systems, integrate this step as standard practice.

Ion Exchange Resin Tanks

These tanks hold the cation and anion resin beads. Depending on system design, they may sit in separate vessels or share a single mixed bed.

Resin quality directly affects output purity. Cheaper resin degrades faster and produces inconsistent results. For a closer look at resin selection, our Ion Exchange Resin Guide breaks down the differences between resin grades.

Control Valves and Monitoring Instruments

Automated valves regulate flow direction and manage regeneration cycles. Meanwhile, conductivity meters continuously track output purity.

Modern systems often include digital displays that alert operators when resin performance drops. This feature reduces downtime and prevents contaminated water from entering production lines unnoticed.

Post-Treatment and Polishing Units

Some applications need water purer than standard deionization can achieve alone. In these cases, a polishing stage using mixed bed resin removes any remaining trace ions.

Laboratories and pharmaceutical facilities frequently add this final step to meet strict purity standards.

Types of Deionized Water Systems

Not every facility needs the same setup. Deionized water systems come in several configurations, each suited to different flow rates and purity requirements.

Portable Deionization Cartridges

Smaller labs and light commercial users often choose portable cartridges. These compact units connect directly to a water line and produce moderate purity on demand.

They work well for occasional use but cannot match the output consistency of larger systems.

Two-Bed Deionization Systems

Two-bed systems separate cation and anion resin into distinct vessels. Water flows through one tank, then the other.

This design allows easier regeneration and monitoring, though it typically produces slightly lower purity than mixed bed alternatives.

Mixed Bed DI Systems

A mixed bed DI system combines cation and anion resin within a single tank. The beads mix thoroughly, giving water more contact opportunities with both resin types.

This design produces exceptionally high purity, often exceeding 18 megohms. Many electronics and pharmaceutical operations prefer this configuration for its consistent results.

Continuous Electrodeionization (CEDI)

CEDI systems use electrical current alongside ion exchange membranes. This continuous process reduces the need for chemical regeneration, making it attractive for facilities focused on sustainability.

While CEDI systems carry a higher upfront cost, they often reduce long-term chemical handling and waste disposal concerns.

Industrial Applications of Deionized Water Systems

Deionized water touches far more industries than most people realize. Let’s look at where it plays the biggest role.

Electronics and Semiconductor Manufacturing

Microchip fabrication demands water free of mineral residue. Even microscopic contamination can ruin sensitive components during rinsing and cleaning stages.

Many manufacturers pair their industrial DI water system with a dedicated Deionized Water Cleaning System to achieve spotless, streak-free surfaces on delicate parts.

Pharmaceutical and Laboratory Use

Drug manufacturing requires water that meets strict pharmacopeia standards. Laboratories similarly depend on DI water purification for accurate testing and reagent preparation.

Contaminated water in these settings can compromise entire experiments or production batches, making purity non-negotiable.

Power Generation

Boiler feedwater must stay free of mineral scale. Left untreated, minerals build up inside pipes and reduce equipment efficiency over time.

Power plants use large-scale commercial deionized water system setups to protect turbines and boilers from costly scale damage.

Food and Beverage Production

Some food processing steps require mineral-free water to maintain consistent taste and product quality across large production runs.

Automotive and Metal Finishing

Rinsing operations after painting or plating benefit from deionized water because it leaves no spots or mineral streaks on finished surfaces.

Cosmetics and Personal Care Manufacturing

Cosmetic formulations often depend on mineral-free water as a base ingredient. Hard water minerals can react with certain compounds, changing texture, color, or shelf stability in finished products.

Commercial and Institutional Use

Hospitals, hotels, and large commercial kitchens sometimes install a commercial deionized water system for equipment like autoclaves, steam generators, and specialty cleaning tasks. Mineral-free water reduces scale buildup and extends equipment lifespan across daily operations.

Advantages and Limitations of DI Water Systems

Every technology has strengths and trade-offs. Understanding both sides helps you make a confident purchasing decision.

Key Advantages

Deionized water offers exceptional purity levels that ordinary filtration cannot match. It removes nearly all dissolved minerals, which protects sensitive equipment and products.

Systems also tend to have lower upfront costs compared to reverse osmosis or distillation setups of similar output capacity. Additionally, resin-based systems are relatively simple to operate once properly installed.

Notable Limitations

Deionization does not remove bacteria, viruses, or organic contaminants effectively. Facilities needing microbiological control often pair DI systems with additional treatment stages.

Resin also requires periodic replacement or regeneration. Neglecting this maintenance step reduces water quality and can allow contaminants to pass through unnoticed.

It’s worth noting that deionized water is not identical to distilled water, even though people often confuse the two terms. Our article on Deionized Water vs Distilled Water explains these differences in detail.

Operating Costs and Environmental Considerations

Regeneration chemicals like acid and caustic soda add ongoing operating costs. Some facilities also need proper disposal procedures for spent regeneration wastewater, which adds a layer of environmental compliance.

Newer technologies like CEDI reduce chemical dependency, but they come with higher equipment costs upfront. Weighing long-term operating expenses against initial investment helps buyers choose equipment that fits their budget realistically.

How to Choose the Right Deionized Water System

Selecting equipment depends heavily on your specific operation. Here are the factors worth evaluating carefully.

Assess Your Required Purity Level

Laboratories and electronics manufacturers typically need higher purity than general industrial cleaning applications. Match your system type to your actual purity requirements rather than overspending on capacity you don’t need.

Consider Flow Rate and Daily Volume

Calculate how much water your operation consumes daily. Undersized systems struggle to keep pace, while oversized units waste resources and increase costs unnecessarily.

Factor in Resin Replacement and Maintenance

Ask suppliers about expected resin lifespan and regeneration frequency. Facilities that skip regular maintenance often see purity drop faster than expected.

If you’re unsure how long your treated water stays usable after production, our guide on How Long Does Deionized Water Last offers helpful context for storage planning.

Review Water Quality Standards Relevant to Your Industry

Pharmaceutical, semiconductor, and laboratory sectors each follow specific purity benchmarks. Confirm your chosen system can consistently meet these standards before committing to a purchase.

Evaluate Space, Installation, and Supplier Support

Larger mixed bed or CEDI systems need adequate floor space and proper plumbing connections. Plan installation logistics early, especially if you’re retrofitting an existing facility rather than building new.

Supplier support also matters more than buyers often expect. Reliable technical assistance, spare parts availability, and clear maintenance guidance can save significant downtime later. Distributors and importers sourcing equipment for clients should confirm these details directly with manufacturers before finalizing any order.

According to industry research published by Chinese resin market analysts, ion exchange resin demand keeps expanding across water treatment, electronics, and pharmaceutical sectors nationwide. New applications are also emerging in areas like energy metal recovery and ultrapure water production for advanced manufacturing. This trend reflects how central deionization technology has become to modern industry.

Understand the Basic Preparation Process

If you’re new to this technology, it helps to understand exactly how facilities produce this water in the first place. Our step-by-step breakdown on How to Make Deionized Water walks through the practical process from start to finish.

Final Thoughts

So, what is a deionized water system in practical terms? It’s a purification method that strips water down to its cleanest possible state by removing dissolved minerals through ion exchange resin.

From semiconductor fabs to pharmaceutical labs, industries choose this technology because ordinary filtration simply cannot deliver the same purity. Whether you’re comparing mixed bed configurations, evaluating CEDI technology, or simply trying to understand resin maintenance, the right system depends on your specific process needs.

Take time to assess your purity requirements, daily volume, and maintenance capacity before choosing equipment. A well-matched system protects your products, your equipment, and your bottom line for years to come.
